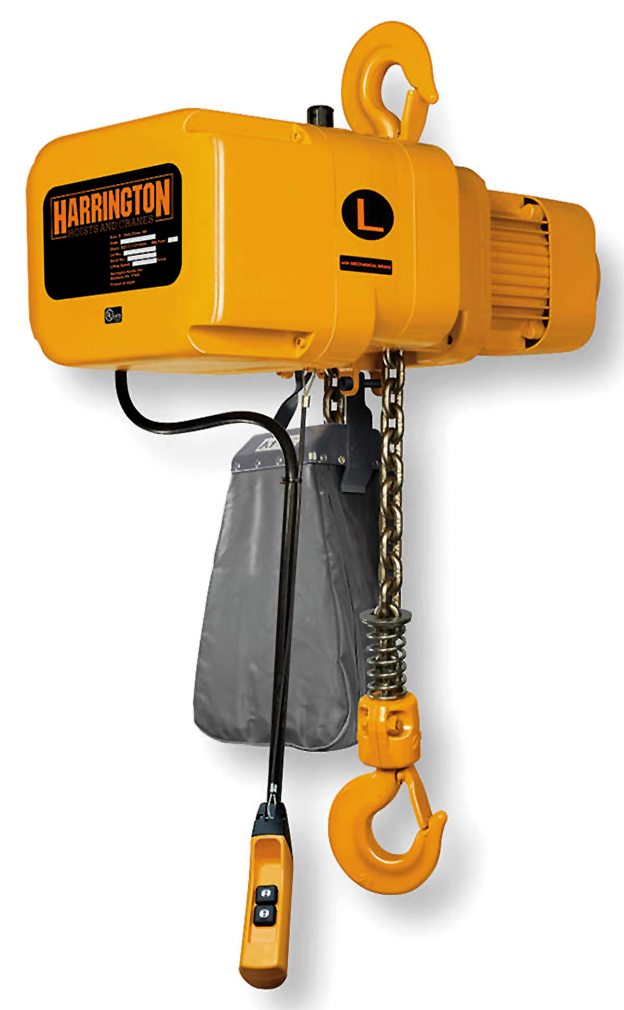

1/4 Ton Harrington NER Electric Chain Hoist, Part No NER003

Availability: In stock
SKU: NER003-CUST
Manufacturer part number: NER003-CUST
Lead Time (subject to change, call to verify): typically ships in 5-7 business days
*
*
*
*
*
*
*
*
$2,772.42
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Documents, Drawings, and Manuals
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 1/2 Ton
  • Headroom: 13.8 in. / 14.6 in.
  • Approximate Weight: 60 lbs. / 79 lbs.
  • Standard Voltage: 208-230 / 460-3-60
  • Control Voltage: 110V
  • Duty Cycle: Single Speed - 60 Min. / Dual Speed - 30/10 Min. with VFD
  • Classification: ASME H4, ISO M5 or M4, FEM 2M or 1Am
  • Hoist Rating: Completely sealed body, IP55
  • Pendant Rating: IP65
  • 60 minute, H4 rated motor for the most demanding applications.
  • All standard models are UL listed to UL 1340 "Standard for Hoists".
  • Plug in pendant and power supply cords save time on set up and maintenance.
  • Super strength, nickel-plated load chain is corrosion and wear-resistant.
  • 5 or 6 pocket load sheave improves chain life and promotes smooth lifting.
  • Contactors are mechanically interlocked, heavy-duty contactors on single-speed models.
  • Hoist suspension is easily changed from hook to lug mount configurations with external suspension pins on most models.
  • Notched Hook and Latch System - provides positive closing and improves resistance against lateral forces standard on most models.
  • Smart Brake Technology - revolutionary DC current motor brake with electrical failsafe design.
  • Extended Chain Life - decreased chain wear as a result of a revolutionary heat treatment process, improved material, and chain size.
  • Easy Access Suspension - external pins allow for quick change from hook to lug for trolley mount configurations on most models.
  • Limit Switches - low-profile upper and lower limit switches are standard.
  • Friction Clutch and Load Brake - friction clutch is standard on NER/ER models and friction clutch with mechanical load brake standard on ER models. Carbon friction material provides consistent performance over a wide temperature range.
  • High Air Flow - cooler motor and brake attributed to an engineered motor fin, fan blade, and fan cover design.
  • Heat Treated Helical and Spur Gears - Precision machined for long life. Oil bath lubrication results in a quiet, smooth, cool operation.
  • Compact Aluminum Body - Die-cast body is lightweight and offers low headroom – one of the best in the industry. Paint is electrostatically applied.
  • Operating Conditions: Recommended for -4° to +104° F and humidity of 85% or less.
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginJapan
