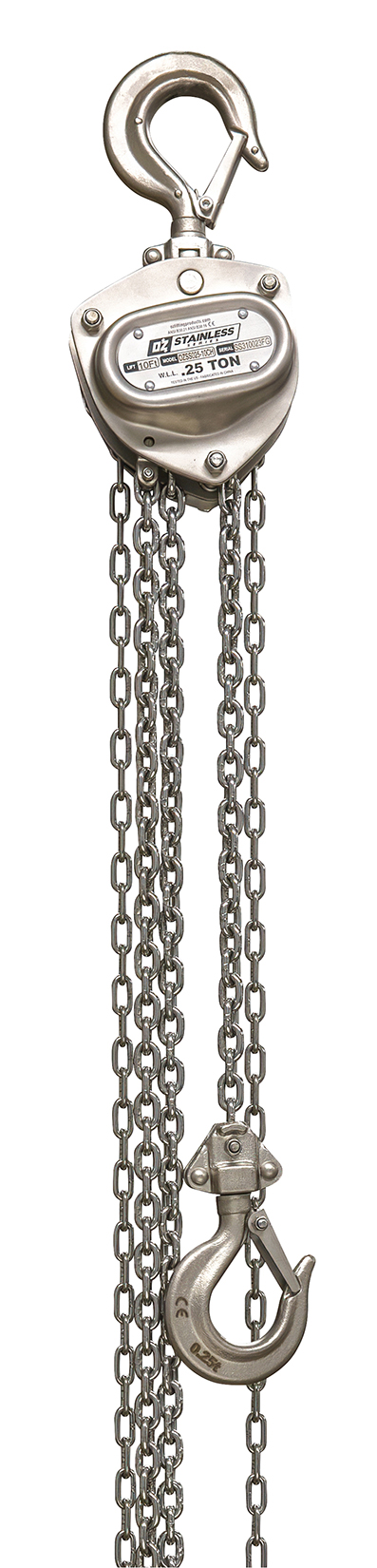

1/4 Ton OZ Stainless Steel Hand Chain Hoist, 20 ft. Lift, Part No OZSS0025-20CH

Manufacturer: OZ Lifting Products
Availability: In stock
SKU: OZSS0025-20CH
Manufacturer part number: OZSS0025-20CH
Lead Time (subject to change, call to verify): typically ships in 10-13 business days
*
$880.00
Ship to
*
*
Shipping Method
Name
Estimated Delivery
Price
No shipping options
Products Specifications
Attribute nameAttribute value
Features
  • Capacity: 1/4 Ton
  • Headroom: 9.84 in.
  • Pull Force: 45 lbs.
  • Reeving: 1
  • Net Weight of Head Only: 8.82 lbs.
  • The OZ Stainless Steel Hand Chain Hoist is a durable and reliable tool designed for heavy lifting and load control. Made from high-quality stainless steel, this hand chain hoist is resistant to corrosion, making it ideal for use in harsh environments or outdoor applications.
  • Type 304 Stainless Steel Construction - Corrosion-resistant, strong, durable, and rugged.
  • Stainless Steel Hand & Load Chain - Provides a durable, non-oily finish.
  • Forged Stainless Steel Hooks and Safety Latches - Each heavy-duty stainless steel safety latch has a bolt and lock nut connection rather than roller pins, making it easy to change latches in the field.
  • Food-Grade - Provided with food-grade grease that meets NSF-H1 standards.
  • Stainless Steel Riveted ID Tags - These tags will not rust and will maintain clear distinct information for easy identification.
  • Minimal Load Lifting Effort - Requires 20% – 35% less effort than the competition, making it ideal for frequent lifting/pulling applications.
  • Low Headroom - Provides maximum lift by minimizing space taken up by the hoist, making it ideal in restricted space applications.
  • Unique Hand Wheel Design - Hand chain can feed into wheel sprocket from various angles, allowing operator to use hoist from side or above load without jamming.
  • Fully Machined Lift Wheel - This feature perfectly accepts the chain allowing for a smooth long-lasting operation.
  • Fully Enclosed Gearing - Protects the gears from contamination and debris.
  • Weather Proof Load Holding Brake - Protected Weston Brake holds the load during the entire operation. The hoists are also equipped with a unique twin pawl design.
  • All Gears and Shafts Run on Roller Bearings - Provides smooth, controlled operation and maintenance-free lubrication.
  • Maintenance - Hoists can be quickly disassembled for fast and easy maintenance.
Warranty1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
Country of OriginMade in the USA
