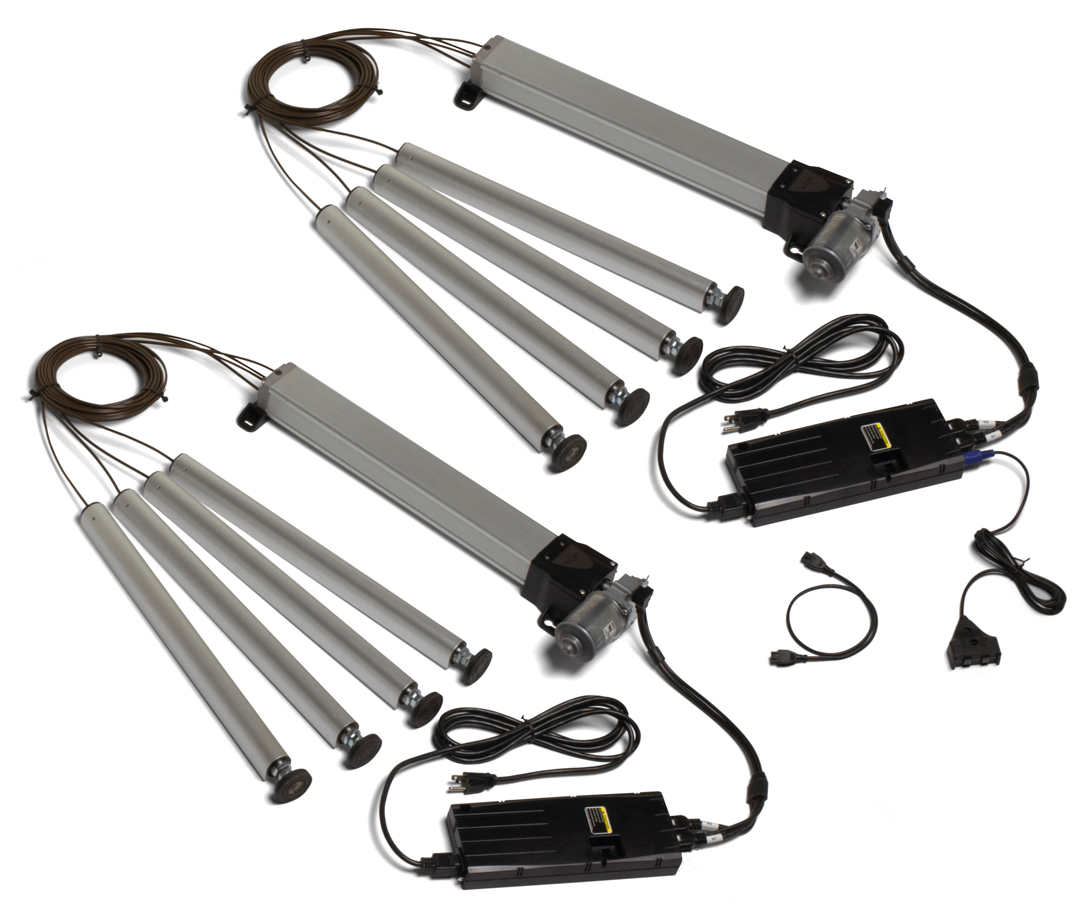

Suspa Movotec 8 Cylinder Bolt-On Dual Drive Lift System

Suspa Movotec 8 Cylinder Bolt-On Dual Drive Lift System

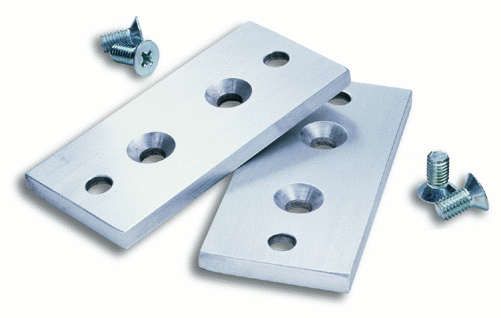

Large Mounting Bracket

L-Angle Extrusion Mounting Bracket

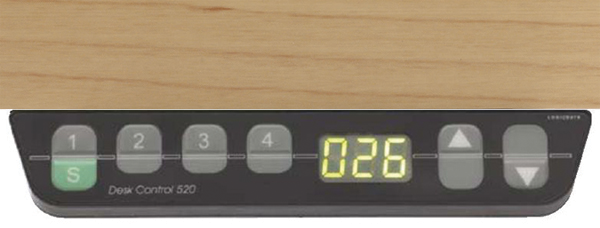

Programmable Display Switch

Suspa Movotec Bolt-On Dual Drive Lift System, Capacity 2,500 lbs., Stroke 8 in., Part No. MLS-00091

Manufacturer: Suspa

Availability: In stock

SKU: MLS-00091

Manufacturer part number: MLS-00091

Lead Time (subject to change, call to verify): typically ships in 25-30 business days

Height Adj. / Vert. Travel

7.9 in. / 200 mm

No. of Cylinders

8 Bolt-On Lift Cylinders

Suspa Options

8 ea. Large Mounting Bracket (p/n D44-00001) [+$65.22]
8 ea. L-Angle Extrusion Mounting Bracket (p/n D44-00018) [+$44.37]

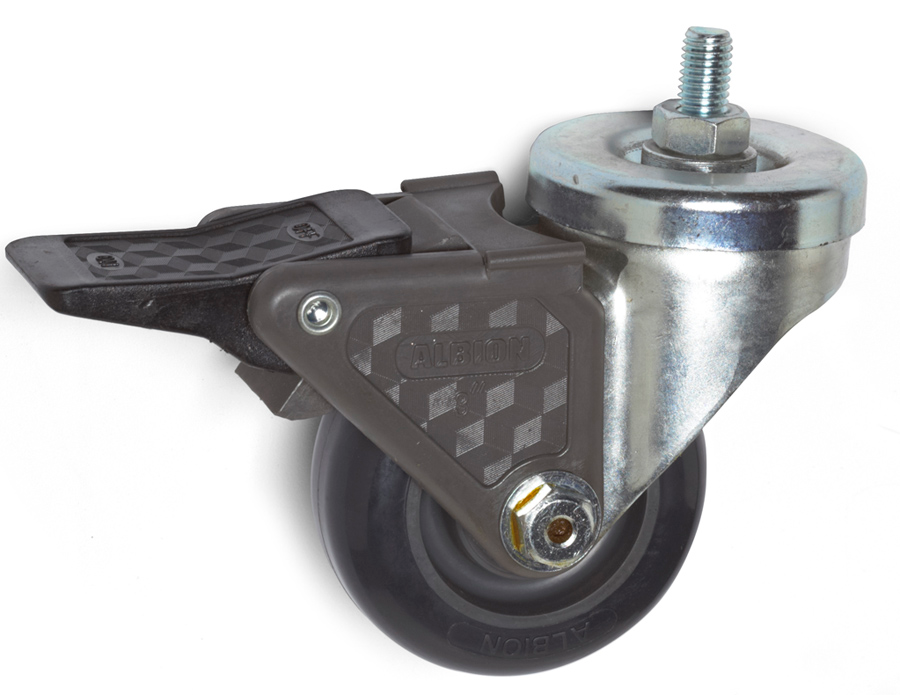

4 ea. Locking Casters (p/n D44-00037) [+$154.52]

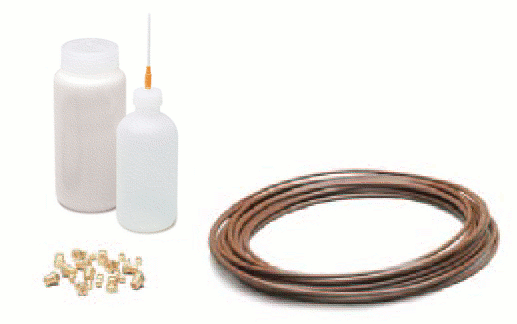

1 ea. Refill Kit (p/n D99-00010) [+$76.16]
1 ea. Programmable Display Switch (p/n 645-03102) [+$75.40]

$2,301.87

Qty:

Documents, Drawings, and Manuals

Brochure

SUSPA Movotec Bolt-On Dual Drive Lift System Brochure

Manual

SUSPA Movotec Bolt-On Dual Drive Lift System Manual

Accessories

SUSPA Movotec Work Table Lift System Accessories

Product Data

SUSPA Movotec Work Table Lift System NT15 Hydraulic Oil Product Data

Instructions

SUSPA Movotec Work Table Lift System Tube Shortening Instructions

Instructions

SUSPA Movotec Work Table Lift System Refill Instructions

Drawing

SUSPA Movotec CB Cylinders Extrusion Mounting Bracket Drawing

Drawing

SUSPA Movotec CB Cylinders Large Mounting Bracket Drawing

Drawing

SUSPA Movotec CB Cylinders Drawing

Drawing

SUSPA Movotec Motor Driven Electric Pump Drawing

Drawing

SUSPA Movotec Low Profile Switch P/N 645-02553 Drawing

Drawing

SUSPA Movotec Programmable Switch P/N 645-03102 Drawing

Drawing

SUSPA Movotec 120VAC COM/E Controller Drawing

Products Specifications

Attribute name	Attribute value
Features	Part Number: MLS-00091 Capacity: 2,500 lbs. / 1134 kg Adjustment Range: 7.9 in. / 200 mm Can be easily attached to a workbench or light industrial machine to provide vertical height adjustment. Ideal for transforming static work surfaces into dynamic ones. System includes: Two synchronized Motor Driven Systems with controller and switch Two 2.5m (8ft.) and Two 3m (10ft.) sections of flexible tubing per pump Glides for each lift cylinder Drilling templates, tubing clips and cable ties Installation and operating instructions Low Profile Up/Down Switch
