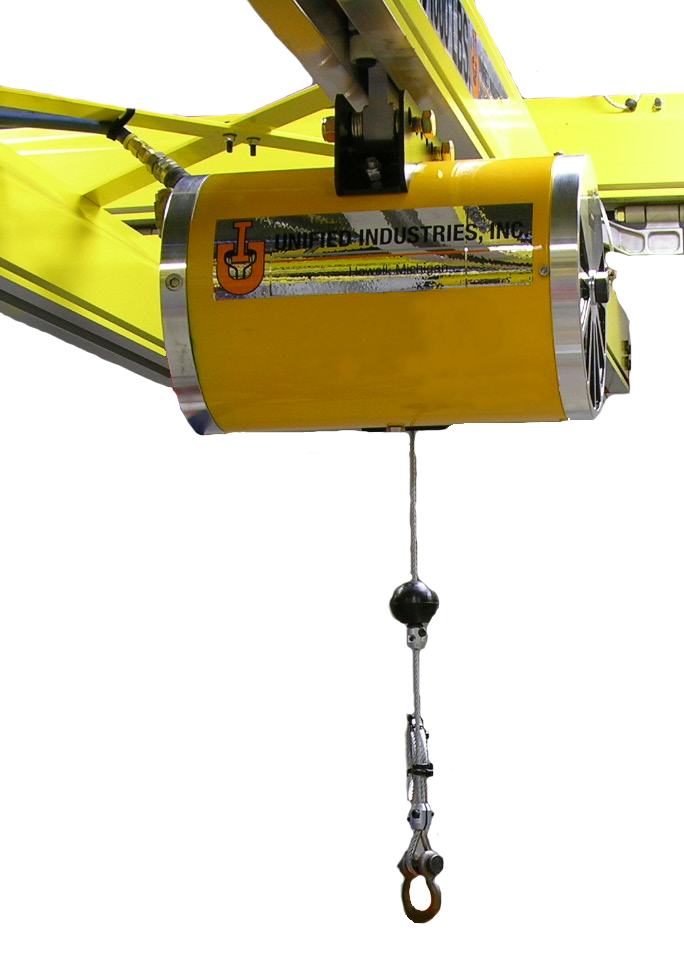

Unified 220 lb Air Balancer, No Controls, UBB-220-118

Availability: In stock

SKU: UBB-220-118

Manufacturer part number: UBB-220-118

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

$3,003.00

Qty:

Documents, Drawings, and Manuals

Brochure

Unified Industries Pneumatic Cable Balancer Brochure

Manual

Unified Industries Pneumatic Cable Balancer Manual

Products Specifications

Attribute name	Attribute value
Features	Part No: UBB-220-118 Capacity: 220 lbs. / 100 kg Vertical Lift: 118 in. / 3000 mm Weight: 94 lbs. / 42.5 kg Load Safety - Check valve in case of loss of air supply. Energy Efficient - Only a fraction of CFM per cycle when compared to a pneumatic hoist. Longer Service Life - Robust precision mechanical design & powder-coated housing ensure trouble-free extended life. Transfers loads with more precision than a hoist. Ideal for suspending tools, weld guns, and fixtures as well as material handling applications. Simple to adjust UP/DOWN speeds and “float” mode options available. Uses non-lubricated air, assuring clean environment. All non-reeved balancers come equipped with a 9 meter cable.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
