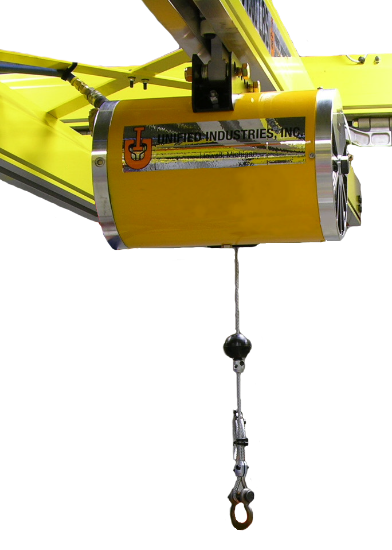

Unified 331 lb Air Balancer, Controls & Pendant Kit, UAB-331-079

Availability: In stock

SKU: UAB-331-079

Manufacturer part number: UAB-331-079

Lead Time (subject to change, call to verify): typically ships in 10-13 business days

$3,926.00

Qty:

Documents, Drawings, and Manuals

Brochure

Unified Industries Pneumatic Cable Balancer Brochure

Manual

Unified Industries Pneumatic Cable Balancer Manual

Products Specifications

Attribute name	Attribute value

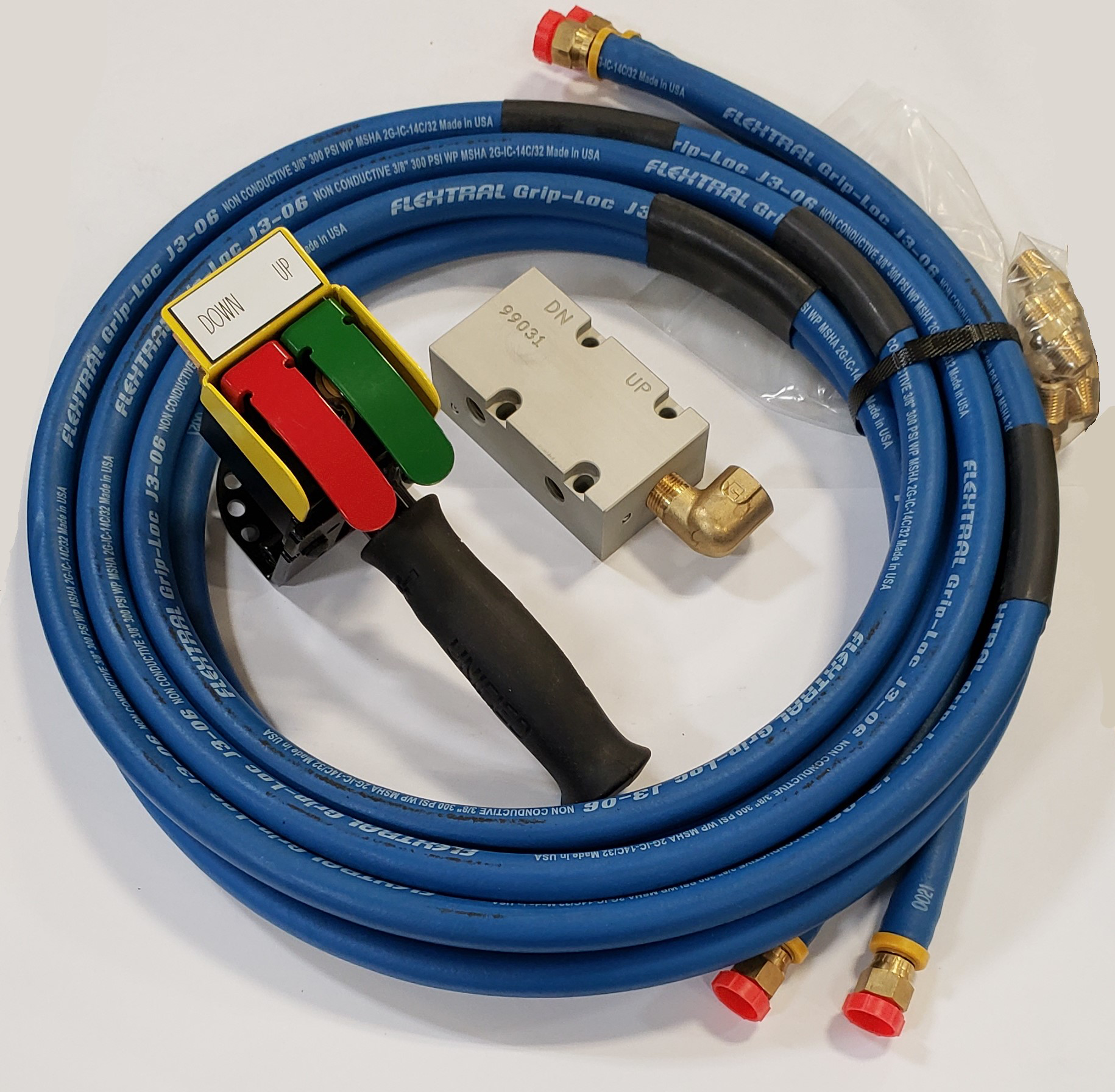

Features	Part No: UAB-331-079 Capacity: 331 lbs. / 150 kg Vertical Lift: 79 in. / 2000 mm Weight: 105 lbs. / 47 kg *Controls Kit (99026):* Up/Down Manifold 2-Button Pendant 12 ft. of Hose Load Safety - Check valve in case of loss of air supply. Energy Efficient - Only a fraction of CFM per cycle when compared to a pneumatic hoist. Longer Service Life - Robust precision mechanical design & powder-coated housing ensure trouble-free extended life. Transfers loads with more precision than a hoist. Ideal for suspending tools, weld guns, and fixtures as well as material handling applications. Simple to adjust UP/DOWN speeds and “float” mode options available. Uses non-lubricated air, assuring clean environment. All non-reeved balancers come equipped with a 9 meter cable.
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
