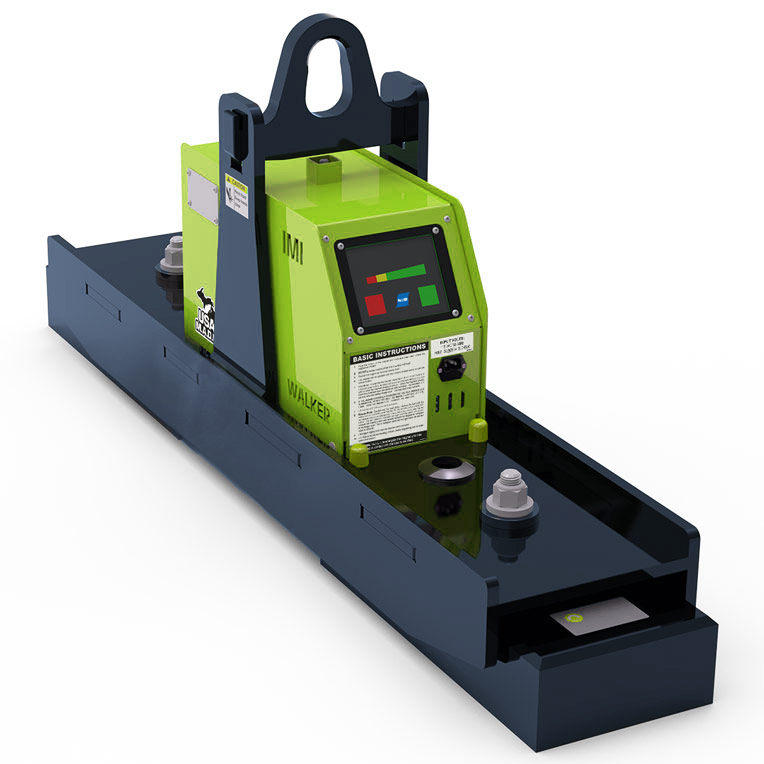

Walker BUXF11000 Lift Magnet for Flat Materials, 11,000 lb Capacity, Battery Powered On/Off

Battery-powered lift magnet for plates, die blocks, and flat materials. Features remote control operation and smart battery management for reliable cordless lifting.

Manufacturer: Industrial Magnetics, Inc.

Availability: In stock

SKU: BUXF11000

Manufacturer part number: BUXF11000

Lead Time (subject to change, call to verify): typically ships in 7-10 business days

Magnet On/Off Control *

On-Board Buttons or Hand-Held Radio Remote

$18,652.00

Qty:

Documents, Drawings, and Manuals

Brochure

Walker BUX Battery Powered Lifting Magnets Brochure

Manual

Walker BUX Battery Powered Lifting Magnets Manual

Products Specifications

Attribute name	Attribute value

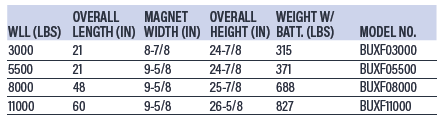

Features	Model Number: BUXF11000 Working Load Limit: 11000 lb / 4989.51 kg Overall Dimensions Height: 26-5/8 in. Width: 9-5/8 in. Length: 60 in. Height to Crane Hook: 25-1/2 in. Magnet Dimensions Height: 4-1/2 in. Width: 9-5/8 in. Length: 21 in. Bail Opening Thickness: 1-1/4 in. Height: 4-1/8 in. Width: 2-1/2 in. Weight: 827 lb.

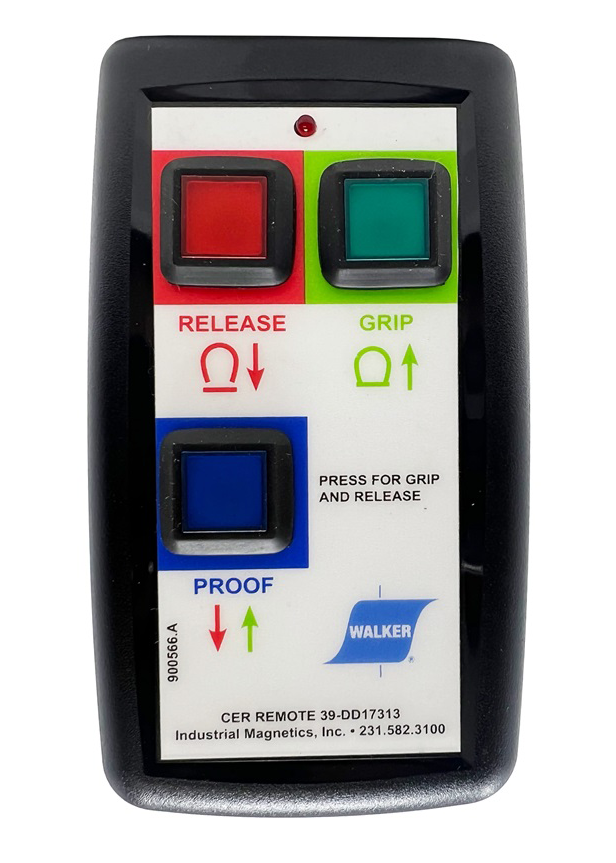

Key Benefits	Smart Battery Management: Automatic cut-off prevents over-charging, while an audible alarm and flashing light alert users to low battery levels. Safety Features: The magnet will not turn on with insufficient battery charge, and a bail load sensor prevents de-energization while suspended. User-Friendly Controls: Features dual push-button release and single push-button lift for efficient operation. Convenient Remote: Includes a pocket and belt clip for easy accessibility during use. Reliable Design: Built to ASME B30.20 BTH-1 Category B Service Class 3 standards for safety and durability. Battery Requirements: Compatible with AGM lead-acid, deep-cycle batteries (not included).
Applications	Lifting Manual and Hand Lifting Below the Hook
Industries	Fabrication and Welding Steel Production Steel Service Distribution Automotive Manufacturing Appliance Manufacturing Equipment Manufacturing Furniture Manufacturing
Warranty	1-Year Manufacturer's Warranty. (Manufacturer's warranty does not include on-site repairs. Items will need to be shipped with pre-paid freight to TSOC's repair facility.)
