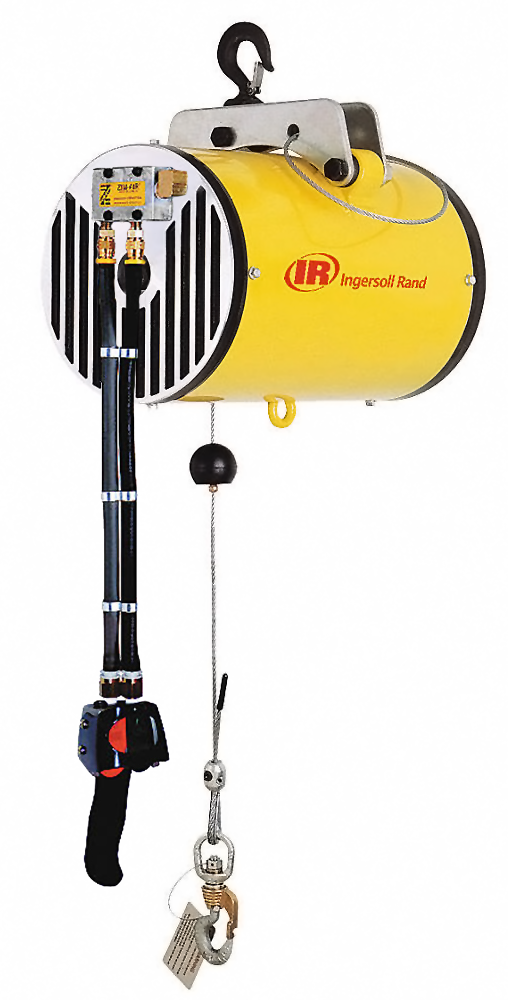

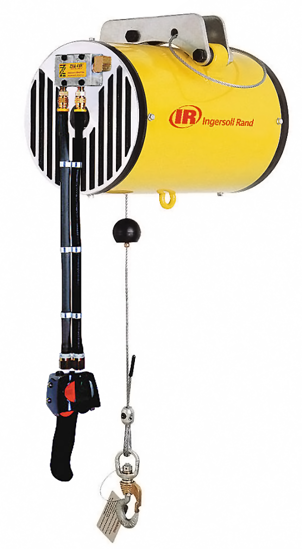

| Features | - Capacity — 350 lbs. / 155 kg at 100 psi.
- Vertical Hook Travel — 80 in. / 2032 mm (single wire rope)
- Controls — Ergonomic up/down ZA (pendant) lets you handle varying loads. Comes with 12 ft. (3.7 m) of drop.
- High Speed, Precise, Strain-Free Positioning — Float leaves both hands free to raise, lower, or shift the load with virtually no resistance; no more "hoist control" hit-and-miss spotting.
- Low Air Consumption — Approximately 1/8 cfm required per cycle (one fiftieth of that of an air hoist) means very low energy costs.
- Application Type — Best for Pick & Place or Precision Assembly
- Simple Adjustment — Clear access to air-flow calibration controls allows quick, easy adjustment of the float.
- Rugged Reliability — For continuous duty with minimal maintenance.
- Clean, Oil-Free Operation — Pre-lubricated design eliminates air-line lubrication and oil mist exhaust; ideal for food processing and clean manufacturing environments.
- Built-In Overload Protection — The lifted load can never exceed the unit’s maximum rated capacity.
- Minimal Cable Recoil — If the load is accidentally lost, a centrifugal brake (Z brake) automatically stops rapid upward cable travel.
- Rugged Steel Housing — All steel housing for added durability.
- Anti-Friction Ball Screw — Creates smooth rotation path for the cable reel.
- Heavy-Duty Thrust Bearing — Absorbs piston force and transfers smooth reel rotation over the ball screw.
- Low-Friction Cable Guide — Ensures smooth cable feed on and off the reel.
- Air Chamber and Piston — Forms the heart of the unit. Air entering the chamber pushes the piston to rotate the spool, wind the cable, and lift the load. Exhausting air lowers the load. Regulating this flow balances the load, creating a zero gravity float.
- Injection-Molded Reel — Engineered plastic for excellent durability and wear resistance.
- CE Certification — Meets the requirements for the European community.
|
