Gorbel Bridge Cranes Gorbel Bridge Cranes Gorbel Bridge Cranes

Gorbel Bridge Cranes

Ideal for any lifting job from 150 pounds to 2-tons.

Call or email us for a quote!

Gorbel Bridge Cranes

Gorbel Bridge cranes increase productivity and create a safe working environment by allowing loads to be lifted and positioned with ease. Gorbel workstation cranes allow anyone regardless of age, or strength to safely perform repetitive lifting tasks up to 4,000 pounds. Gorbel workstation cranes have a productivity index of 100:1, meaning that loads of 1,000 pounds can be moved with as little as 10 pounds of force. Using a workstation crane will increase the overall productivity of your workforce by allowing most repetitive lifting jobs to be performed by up to 90% of workers. Workstation cranes typically refer to jib, free standing, and ceiling mounted enclosed track systems, but Gorbel also manufactures some other closely related products including portable gantry cranes and I-beam jib cranes.

Gorbel Free Standing Bridge Cranes
Gorbel Free Standing Bridge Cranes

Free standing workstation bridge cranes are offered in 250 lbs., 500-lbs., 1/2-ton, 1-ton and 2-ton capacities. Gorbel free standing workstation cranes are available in cold-formed high strength steel, lightweight aluminum, for lighter-duty applications, and stainless steel for caustic work environments.

Ceiling Mounted Overhead Workstation Bridge Cranes
Ceiling Mounted Overhead Workstation Bridge Cranes

Ceiling mounted workstation bridge cranes are offered in 250 lbs., 500 lbs., 1/2-ton, 1-ton and 2-ton capacities. Gorbel ceiling mounted workstation cranes are available in cold-formed high strength steel, lightweight aluminum for lighter-duty applications, and stainless steel for caustic work environments.

Gorbel Monorail Systems
Gorbel Monorail Systems

Gorbel monorail systems can be customized to fit an extremely wide variety of applications including parts assembly, fabrication, machining, injection molding, and process equipment maintenance. Available in steel, stainless-steel, and aluminum models. Gorbel monorail systems range in capacity from 150 to 4,000 pounds.

Wall Mounted Jib Cranes
Wall Mounted Jib Cranes

Wall mounted jib cranes are ideal for supporting tool balancers, air balancers, hoists, vacuum lifters, and welding wire feeders. They can handle up to 200° rotation when column or wall mounted. Available models include: Wall Cantilever I-Beam Jibs, Wall Mounted Workstation Jibs, Wall Bracket Jibs, and Aluminum Wall Bracket Jibs.

Free Standing Jib Cranes
Free Standing Jib Cranes

Free Standing jib cranes are ideal for supporting tool balancers, air balancers, hoists, vacuum lifters, and welding wire feeders. They can handle up to 360° rotation when freestanding or portable. Available models include I-Beam Jibs, Foundationless Jibs, Workstation Jibs, Articulated Jibs, and Portable Jibs.

Portable Adjustable Gantry Cranes
Portable Adjustable Gantry Cranes

Gorbel Portable Adjustable Gantry cranes are the perfect solution for performing infrequent lifts. They are constructed with durable polyurethane casters which provide unparalleled mobility, allowing operators to make a lift anywhere in your facility. Gorbel portable Adjustable Gantry Cranes are available in Adjustable Height and Aluminum models.

Tri-State Overhead Crane is one of the largest Gorbel Master Distributors in the United States. We offer free on-site analysis for applications regarding workstation bridge cranes, jib cranes, and gantry cranes. In addition, we can typically provide you with a quote and drawings within one business day. If you have any questions, please contact our sales team to speak with one of our trained professionals

Overhead Workstation Bridge Cranes

Enclosed track workstation bridge cranes are the perfect solution for covering a rectangular work area. They are designed for easy movement and lead the industry in their ability to spot handle on the X and Y axis. Gorbel workstation bridge cranes can handle applications ranging from 150 pounds to 4,000 pounds with bridge lengths up to 34 feet and runway lengths up to 124 feet. (longer bridge lengths and runway lengths available upon request).

Multiple Gorbel Workstation Bridge Cranes

Gorbel workstation bridge cranes are available in two styles: Free Standing and Ceiling Mounted. Systems can also be designed as a combination of the two.

Ceiling mounted systems are available in steel, aluminum and stainless-steel constructions and allow operators to freely move loads without interfering with floor traffic. They do, however, require the building to have an adequate overhead ceiling structure so the system can be safely mounted.

Free standing workstation systems, on the other hand, are independent of the building and do not put any stress on your ceiling structure. This means that free standing workstation cranes can be located wherever you need them and can also be easily relocated. Like the ceiling mounted systems, free standing systems are available in steel, aluminum, and stainless-steel constructions.

Gorbel workstation bridge cranes are the perfect solution for anyone focused on safety and productivity. According to an independent study conducted by the Rochester Institute of Technology – Ergonomics Department, operators using Gorbel workstation bridge cranes were able to increase productivity by up to 28% when compared to a traditional I-beam jib crane.

Gorbel Bridge Crane Features & Options

  • Motor Driven Tractor Drives can be added to motorize your crane. This can be an add on item after the crane is installed. TSOC can add any additional controls needed, including a radio remote control
  • Longer Cantilevered supports can be added with bracing back to the headers
  • Can be rated for Seismic Zone IV
  • Stainless Steel options for food grade
  • Ease of installation - Systems go together like an erector set, and can be installed on most 6 inch concrete floors, so no foundation is needed.
Column on 6 inch floor

Gorbel Ceiling Suspended Crane Options

  • Standard Full Suspension
  • Parallel Flush Mount
  • Perpendicular Flush Mount
  • Sloped Roof Mount

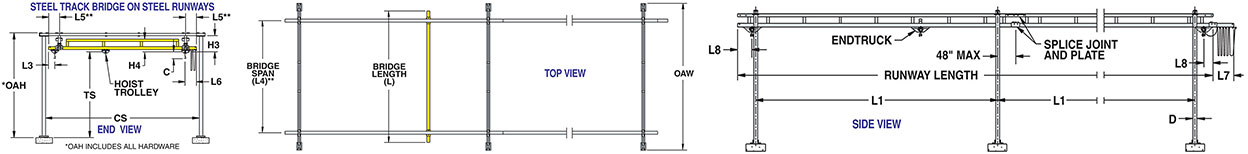

1/4-Ton to 1/2-Ton Workstation Bridge Cranes

  • Freestanding, ceiling mounted, monorail or a combination
  • Standard lift heights: 10-14 feet
  • Standard runway lengths: 11.5-124 feet
  • Standard bridge lengths: 10-34 feet
  • Standard Support Centers: GLCS 20 ft. / GLCSL 25 ft. / GLCSLX 30 ft.

1 Ton to 2 Ton Workstation Bridge Cranes

  • Freestanding, ceiling mounted, monorail or a combination
  • Standard lift heights: 10-14 feet
  • Standard runway lengths: 11.5-124 feet
  • Standard bridge lengths: 10-34 feet
  • Standard Support Centers: GLCS 20 ft. / GLCSL 25 ft. / GLCSLX 30 ft.

Gorbel Monorail Systems

A Gorbel monorail systems is the perfect solution for the both the simplest and most complex lifting and transport applications. Gorbel monorails can be as simple as a single straight track, used to lift and moves parts along a single axis. On the other hand, they can be customized to transport parts throughout entire facilities. The modular design of gorbel monorail systems allows free standing track, ceiling mounted track, monorail curves, switches, and interlock transfers to all be used in a single system. Gorbel monorail systems are available in capacities ranging from 150 to 4,000 pounds.

Gorbel monorail systems can also be used as parts in more complex workstation crane systems. Using monorail curves, switches and interlock transfers, custom monorail systems can handle extremely sophisticated lifting and transfer applications from one workstation to another. Custom monorail systems make Gorbel workstation cranes adaptable. Whether you are planning for workstation expansion, moving a workstation, creating a specialized solution, or updating an existing solution, Gorbel’s modular design offers industry leading adaptability and customizability.

Gorbel Crane Documents

Productivity Study

Gorbel WSC Productivity Study

Gorbel WSC
Productivity Study

Tri-State Overhead Crane is a Master Distributor, Installer, and Service Provider of Gorbel bridge cranes and monorail systems. These crane systems are ideal in machining, fabrication, warehouse, injection molding, and assembly applications. TSOC serves clients from coast to coast, Canada, Mexico and especially focused in the states of Missouri, Illinois, Indiana, Kansas, Arkansas, Mississippi, Nebraska, Tennessee, Kentucky, Iowa, and Oklahoma.
