1 Ton Overhead Crane Examples
Example 1 – 1 Ton Under-Running Double-Girder Bridge Crane with Twin Hook Rotating Hoist

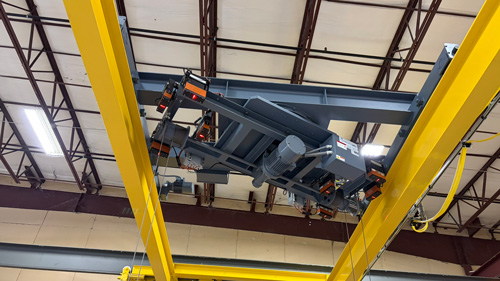

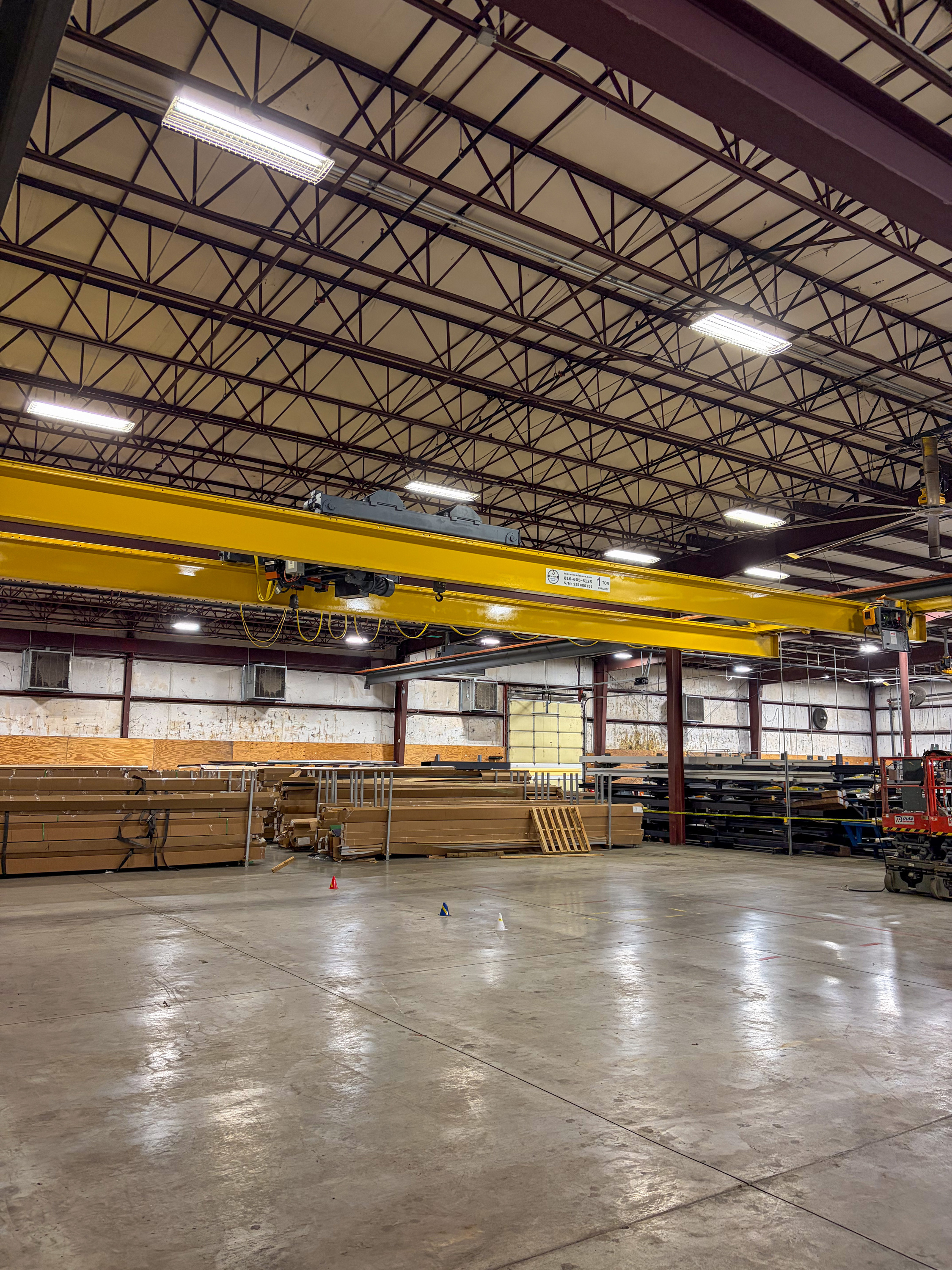

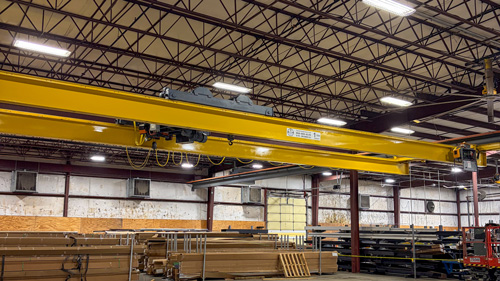

This 1-ton under-running double-girder bridge crane was custom designed by TSOC to handle large, awkward loads in a facility with limited headroom. The Electrolift twin hook turntable hoist provides continuous 360-degree rotation — allowing operators to pick, reorient, and place long boxes into storage racks without manual repositioning.
Problem: The customer needed to replace a heavily used single-girder underhung crane while working within existing constraints: limited headroom, a patented track runway that had to be reused, and a process that required rotating 16- to 18-foot boxes 90 degrees before placing them into storage racks.

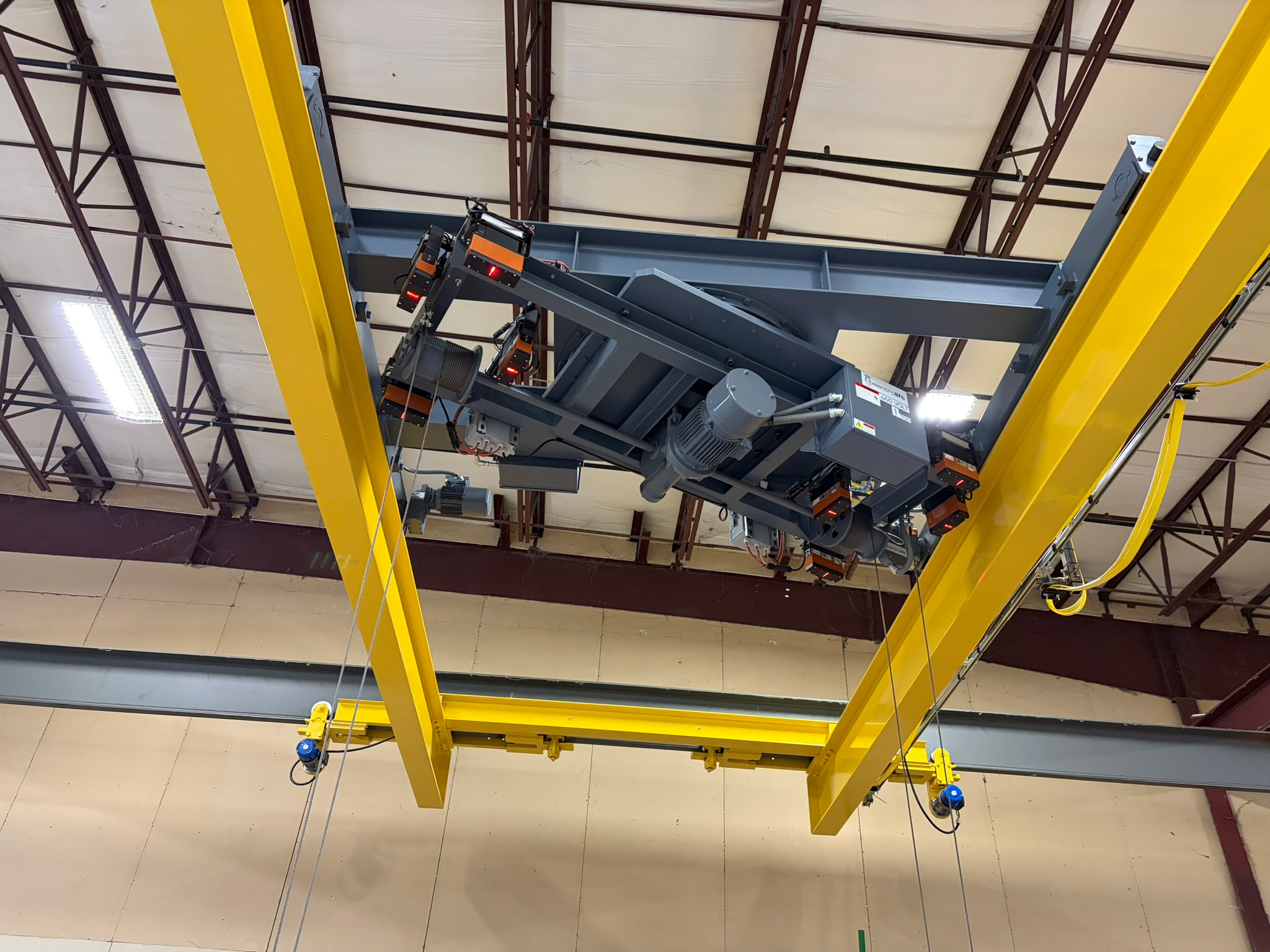

Solution: TSOC designed and installed a custom double-girder underhung bridge crane with a top-running 8-foot turntable hoist and trolley featuring continuous 360-degree rotation. Two hooks, spaced 8 feet apart, allow the operator to pick product in any orientation and set it precisely into rack positions with minimal headroom clearance. Red safety lights project a box outline on the floor around each hook for accurate load positioning. A slow-down/stop anti-collision system protects against end-stop impacts. The crane also handles the reverse move — pulling product from racks and transferring it to workstations.
Result: The customer gained a fully functional replacement system that fits within the existing runway and headroom constraints, with the added capability of continuous load rotation and operator guidance lighting — eliminating the manual repositioning steps required with the previous crane.
- Capacity: 1 Ton
- Type: Under-Running Double-Girder
- CMAA Class: "C", Indoor
- Span: 48 ft. – 3 in.
- Bridge Speed: 100 FPM – Two-Step VFD
- Hoist:
- Model: Electrolift Twin Hook Power Rotating Wire Rope Hoist
- Classification: ASME H4
- Lift Speed: 25 FPM – Two-Step VFD
- Trolley Speed: 120 FPM – Two-Step VFD
- Rotation: 360° Continuous
- Hook Spread: 8 ft.
- Safety Lights: Red LED projection lights at each hook
- Controller Type:
- Magnetek Flex 8x2 radio remote with spare transmitter
- 10-Button festooned pendant backup station
- Enclosure: NEMA 4/12
- Power: 460/3/60V
Example 2 – 1 Ton Top Running Single Girder Bridge Crane
- Capacity: 1 Ton
- Type: Top Running Single Girder
- Span: 35 ft. – 0 in.
- Hoist:
- Model: CM Lodestar Electric Chain Hoist
- Speed: 2-Speed
- Bridge & Trolley Speed: VFD Controlled
- Controller Type:
- Magnetek Flex Ex radio remote
- Runway:
- Length: 64 ft. – 0 in.
- Electrification: 90-Amp Duct-O-Wire Conductor Bar
- Support Centers: Custom to account for existing machinery, garage doors, and other immovable equipment
- Columns: T-columns used for longitudinal and latitudinal forces in place of kickers and headers
- Cantilever: Custom designed for maximum hook coverage
- Installation: TSOC Crane crew
