5-Ton Overhead Bridge Cranes

TSOC designs, manufactures, and installs single girder cranes.

CALL 314-869-7200 FOR A QUOTE!

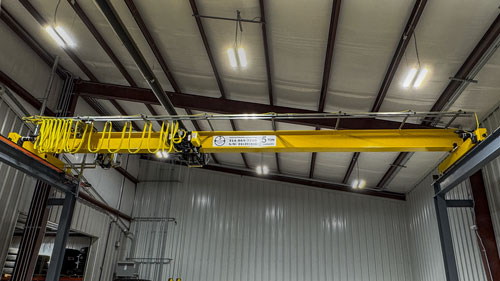

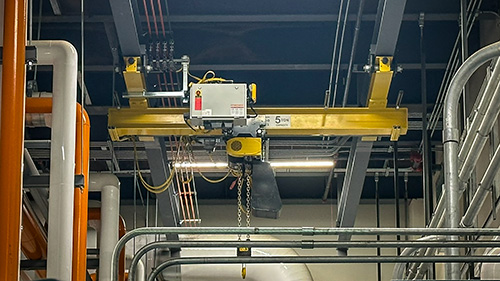

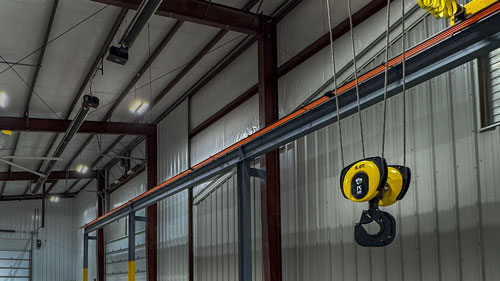

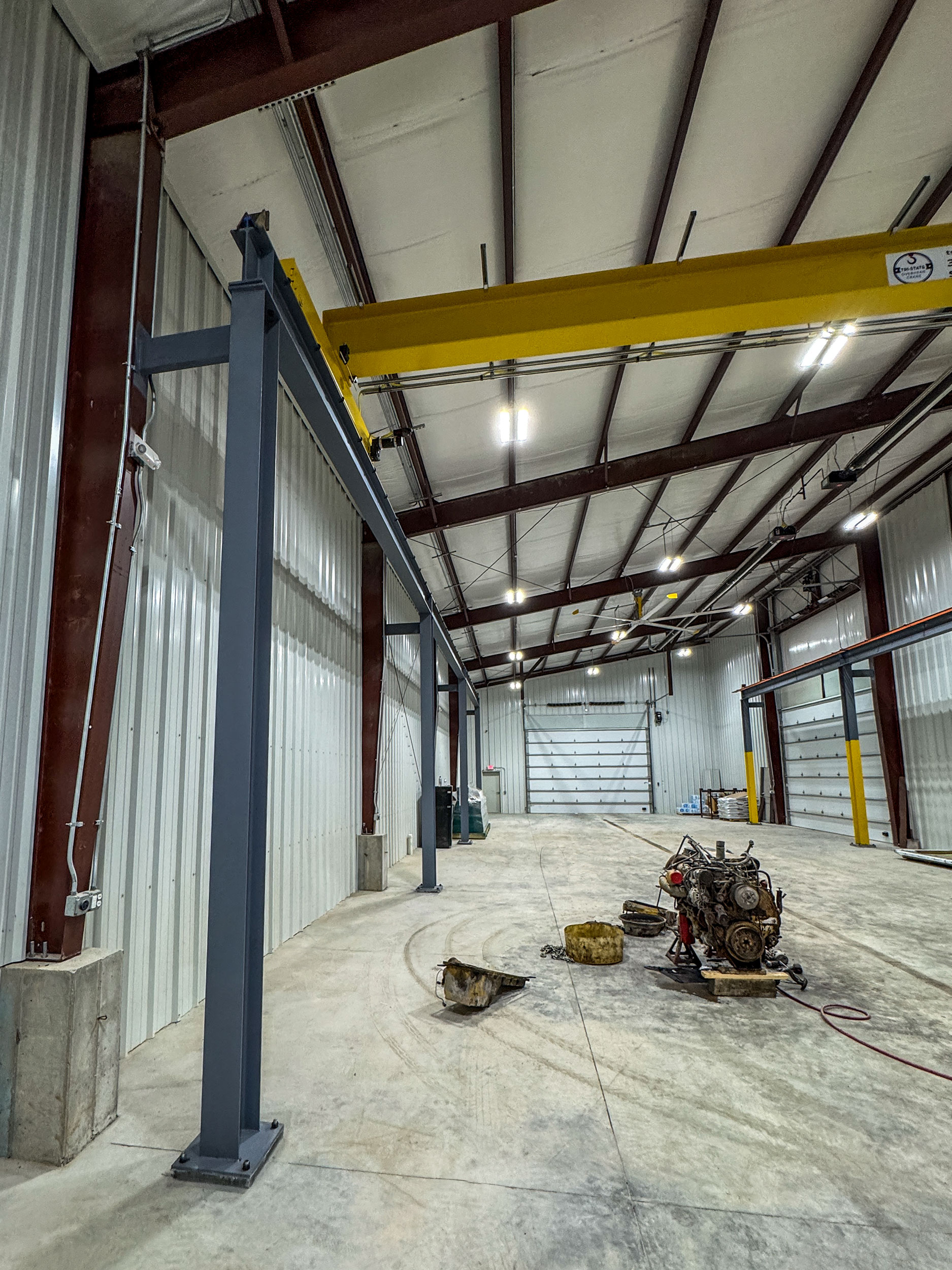

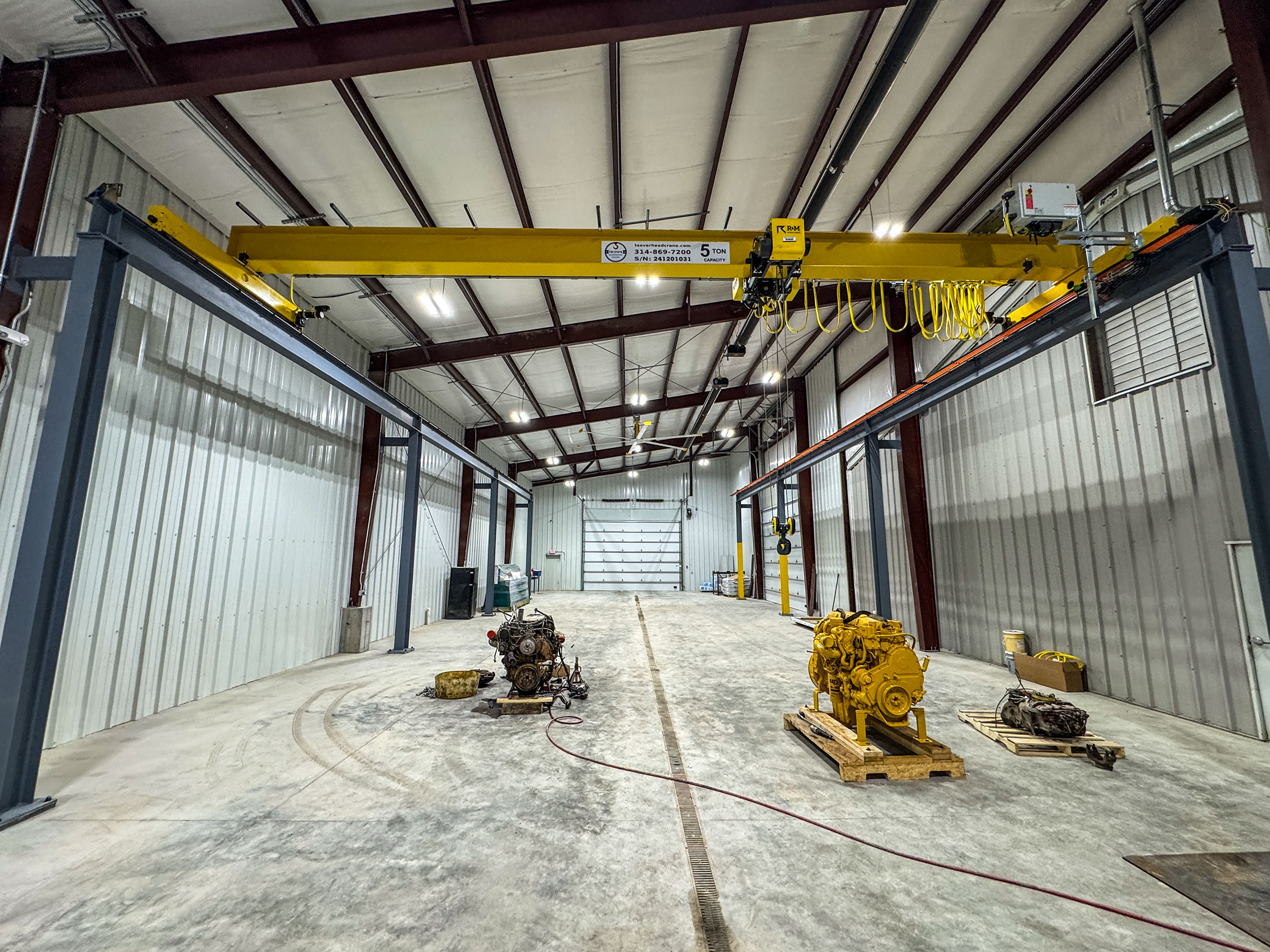

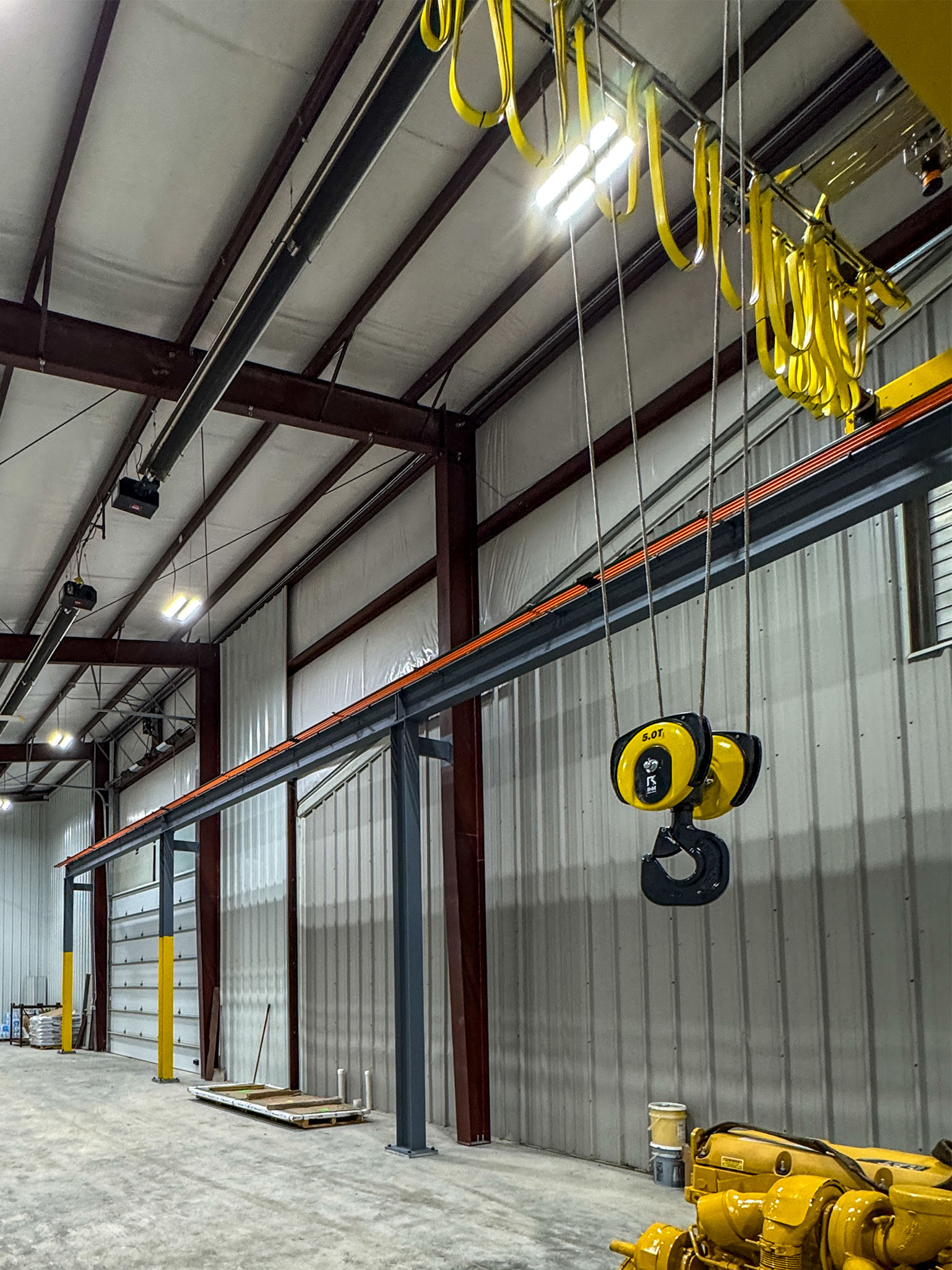

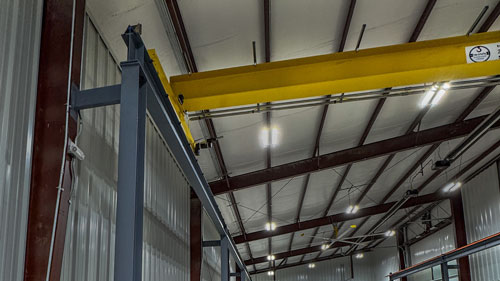

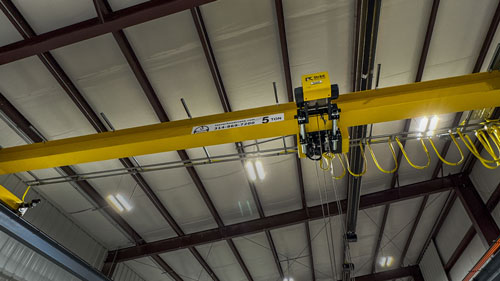

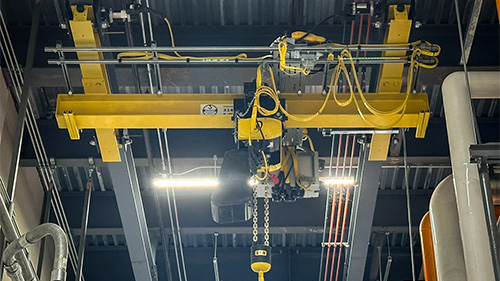

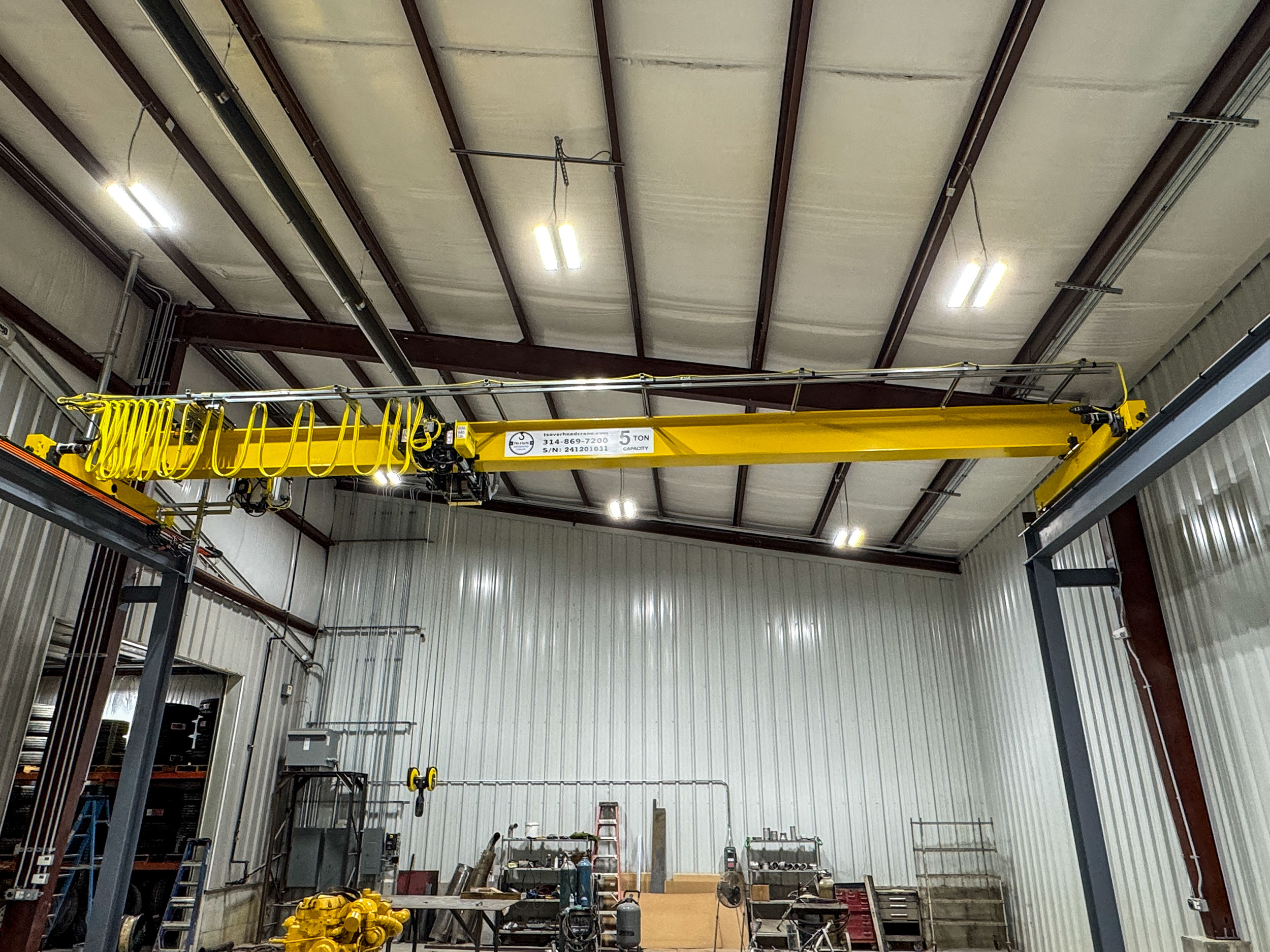

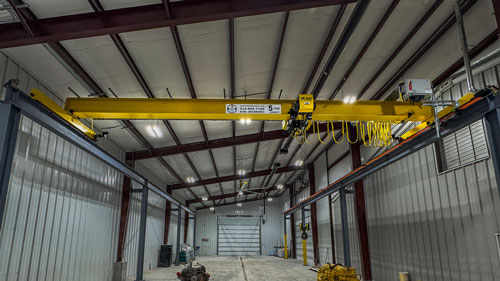

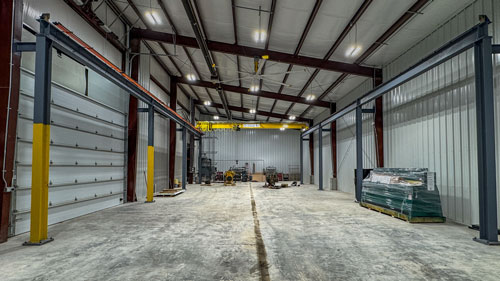

5 Ton Overhead Crane Examples

Example 1 - 5-Ton Bridge Crane with Custom Runway for Water Bottle Manufacturing Company

This 5-ton bridge crane is used to lift molds out of a plastic injection molding machine and allows workers to perform maintenance or make modifications to the mold. The floor space surrounding the mold machine had special space requirements specified by the customer that prevented a standard foundation footing install of the four runway columns. So, our in-house TSOC engineers provided and designed a custom oversized column and base plate solution allowing the install of the columns without the need for footings.

  • Capacity: 5 Ton (Bridge and Runway).
  • Type: Top Running, Single Girder, Indoor.
  • Runway: 4-Post Free Standing Runway.
  • Installation was done by our TSOC Crane crew.

Example 2 - 5 Ton Crane For Ammunition Supplier Specifications and Info

Two 5 Ton Top Running Overhead Bridge Cranes
Custom Overhead Bridge Crane Runway Column Footer

Single Girder Top Running Bridge Crane

  • 39 ft. Span.
  • R&M Spacemaster Hoists with two speed controls were provided.
  • VFD Controlled Bridge and Trolley Motion.
  • Custom Columns were provided to avoid the need for a foundation.
  • Magnetek Flex Ex radio remote.
  • Duct-O-Wire Runway Electrification
  • Installation was done by our TSOC Crane crew.

Example 3 - 5-Ton Crane for Plasma Cutting Machinery Manufacturer

5 Ton Top Running Single Girder Overhead Bridge Crane

Manufacturers include: Shawbox, Duct-O-Wire

  • 5-Ton Capacity.
  • Top Riding, Single Girder Bridge Crane.
  • 45 ft. – 9 in. Span.
  • Class "C" Indoor Usage.
  • Shawbox World Series Wire Rope Hoists.
  • Independently Festooned PB Station.
  • VFD Control Bridge.
  • Two-Speed Hoist and Trolley.
  • Trolley Travel Limit Switches.

5-Ton Capacity Runway

  • 168 ft. – 0 in. Long.
  • Mounted to haunches provided by building manufacturer.
  • 90-Amp Duct-O-WIre Conductor Bar Runway Electrification.
  • Installation done by our TSOC crane crew.

Example 4 - Pair of 5-Ton Cranes for Highway and Bridge Component Manufacturer

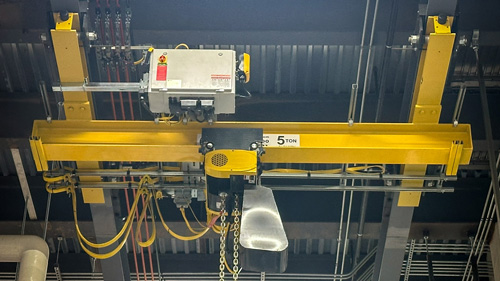

5 Ton Under Running Cranes

Manufacturers include: R&M, TC/American, Magnetek, Duct-O-Wire

  • 5-Ton Capacity.
  • Under Running, Single Girder Bridge Crane.
  • 53 ft. – 0 in. Span.
  • Class "C", Indoor Usage.
  • R&M SX Spacemaster Low Headroom Wire Rope Hoist.
  • Magnetek Flex Ex Radio Remote with Back-up Independently Festooned Push Button Station.
  • Two-Speed Hoist.
  • VFD Control Bridge and Trolley.
  • Electronic Separation Device for Crane Collision Avoidance.

5-Ton Capacity Runway

  • 124 ft. – 0 in. Long.
  • Patented Track Ceiling Suspended Runway System.
  • 90-Amp Duct-O-WIre Conductor Bar Runway Electrification.
  • Installation done by our TSOC crane crew.

Example 5 - 5-Ton Crane for Custom Plastic Injection Molder

5 Ton Double Girder Top Running Overhead Crane

Manufacturers include: R&M, Duct-O-Wire

  • 5-Ton Capacity.
  • Top Riding, Double Girder Bridge Crane.
  • 22 ft. – 6 in. Span.
  • Class "C", Indoor Usage.
  • R&M SX Spacemaster Double Girder Wire Rope Hoist.
  • Double Girder hoist used to maximize hook height to service machine.
  • Independently Festooned Push Button Station.
  • VFD Control Bridge and Trolley.

Runway System

  • 5-Ton Capacity.
  • 23 ft. – 0 in. Long.
  • 4-Post Free Standing runway with headers and custom base plates to allow for mounting directly to customer's floor without footings.
  • 90-Amp Duct-O-WIre Conductor Bar Runway Electrification.
  • Installation done by our TSOC crane crew.
5 Ton Top Running R&M Trolley Hoist

Example 6 - 5-Ton Overhead Crane Single Girder

5-Ton Overhead Crane Single Girder

Manufacturers include: R&M, Magnetek, and Duct-O-Wire

  • 5-Ton Capacity.
  • Top Riding, Single Girder Bridge Crane.
  • 460 ft. – 4 in. Span.
  • Class "C" Indoor Usage.
  • R&M Spacemaster Hoists with two speed controls were provided.
  • VFD Controlled Bridge and Trolley Motion.
  • Energy chain was provided for bridge electrification to allow for maximum hook coverage.

Example 7 – (2) 5 Ton Under Running Bridge Crane

(2) 5 Ton Under Running Bridge Crane
  • 5-Ton Capacity.
  • Under Running, Single Girder Bridge Crane.
  • 460 ft. – 4 in. Span.
  • Class "C" Indoor Usage.
  • R&M Spacemaster Hoists with two speed controls were provided.
  • VFD Controlled Bridge and Trolley Motion.
  • Energy chain was provided for bridge electrification to allow for maximum hook coverage.

Example 8 - 5-Ton Double Girder Top Running Bridge Crane

  • 30 ft. Span.
  • Yale YK with two speed contactor controls were provided.
  • Two speed contactor controls also provided for bridge and trolley motion due to underground environment.
  • Trolley mounted LED lights included.
  • Control panel mounted at operator level for easier access.
  • Duct-O-Wire Custom Runway and Bridge Electrification.
  • Installation was done by our TSOC Crane crew.

Example 9 - 5-Ton Low Headroom Monorail Crane

  • 5-Ton Yale Monorail.
  • 3-Ton and 5-Ton Yale Low Headroom Monorails with 131 feet of Lift.
  • 2-Speed controls for Hoist and Trolley.
  • Load Monitoring to Prevent Overloads.
  • Magnetek Flex EX Radios with Internal Horn on all Units.
  • Duct-O-Wire Festoon Electrification.
  • Installation On Beams by TSOC Services Techs. I-beam structure were set by local Iron Workers.

Example 10 - Two 5-Ton Top Running Single Girder Install

5-Ton Crane Install
5-Ton Top Running Single Girder Install
  • Two 5-Ton Top Riding, Single Girder Cranes and VFD bridge and trolley control.
  • Two-Speed hoist control.
  • Over 35 feet - 0 inches of lift on all cranes.
  • Installation was done by our TSOC Crane crew.

Example 11 - 5 Ton Header-Braced Top Running Bridge Crane

TSOC designed, fabricated, and installed a freestanding overhead bridge crane for a glass handling application. It features a header-braced crane runway, which reduces footing size and increases rigidity. This design allowed us to install the runway columns directly to a 6-inch reinforced floor. Hook coverage was maximized across the width of the building by placing the runway columns next to the building columns. A 4-foot cantilever added at the end of the crane runway allows additional hook coverage at the loading dock door.

  • Capacity: 5 Ton (Bridge and Runway).
  • Type: Top Running, Single Girder, Indoor.
  • Crane Class: Class C.
  • Radio: Magnetek Flex EX.
  • Hoist: R&M SX Wire Rope Hoist.
  • Duct-O-Wire conductor bar for the crane runway. Duct-O-Wire festoon electrification for the crane bridge.
  • Installation was done by our TSOC Crane crew.

Example 12 - 5 Ton Hoist Replacement and Electrification Modernization

  • Removed 5-Ton P&H hoist that was having load brake issues and constantly requiring service or breakdown calls.
  • Removed open wire conductor on 200 feet of runway and 65 feet of bridge.
  • Installed 5-Ton Detroit hoist with custom trolley gauge to replace the outgoing P&H hoist.
  • Installed independent push button track and Duct-O-Wire flat cable festoon on the bridge.
  • Installed 200 feet of 110V Duct-O-Wire conductor bar on the runway.
  • Replaced trolley stops on the bridge and runway end stops at office end of the building.
  • Installed Magnetek VFD panel for bridge control and provided the necessary custom conduit setup as the original P&H included bridge, trolley, and hoist contactor controls within the hoist panel.

Tri-State Overhead Crane is your reliable overhead bridge crane manufacturer. TSOC distributes and manufactures 5 Ton cranes; serving clients from coast to coast, Canada, Mexico and especially focused in Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
