CM ShopAir Hoist - CM AirStar

Columbus McKinnon Hoists have been engineered and manufactured for over a century, including the CM Shopair hoist, AirStar, and CM AirStar 6 air powered hoist, to provide solutions for industrial manufacturing and construction. TSOC offers a full line of CM pneumatic chain hoists for small capacity jobs to heavy duty manufacturing. CM hoists are proudly made in the U.S.A.

CM air chain hoists feature capacities to meet all of your needs ranging from 1/4 Ton to 7-1/2 Ton.

CM ShopAir

The CM ShopAir is an ideal pneumatic hoist for work stations or production lines due to its lightweight, rugged and compact design.

• Capacities ranging from 1/8 Ton-1/2 Ton. Speeds up to 31 ft/min
• Variable flow, two lever pendant for precise load spotting
• Threaded external exhaust for piping away exhaust in clean room or painting applications
• Gear train is lifetime - lubricated with non-oxidizing grease
• Made in the U.S.A. Lifetime warranty

ShopAir Chain Hoists
Capacity	Part No.	Lift Speed	Wt.
250 lbs.	2178	31 fpm	30 lbs.
300 lbs.	2180	31 fpm	30 lbs.
500 lbs.	2182	21 fpm	30 lbs.
500 lbs.	2179	16 fpm	34 lbs.
600 lbs.	2181	16 fpm	34 lbs.
1000 lbs.	2183	11 fpm	34 lbs.
Models listed above have: Pendant Throttle Control and Hook Suspension Only

CM Airstar

The CM AirStar is a lightweight pneumatic hoist powerful enough for most commercial applications.

• Capacities ranging from 1/4 Ton-1Ton
• Hoist alloy load chain for heavy duty or stainless steel chain for spark resistant, medium duty loads
• Positive action, heavy-duty shoe type brake that holds the load
• Multi-vane rotary air motor for high torque, smooth operation
• Spark resistant models available for hazardous environments
• Pull cord or pendant throttle control available
• Pull cord control hoists provide a lightweight and economical hoist for accurate control of loads
• Made in the U.S.A. Lifetime warranty

Airstar Hoists
Pendant Control / Swivel Hook Suspension
Type	Capacity	Part No.	Lift Speed
Link Chain	1/4-ton	7400D	65 fpm
Link Chain	1/2-ton	7401D	45 fpm
Link Chain	1-ton	7402D	23 fpm
CM AirStar hoists are metric rated, except spark-resistant models. Air Inlet Size is 3/8 in. NPTF.

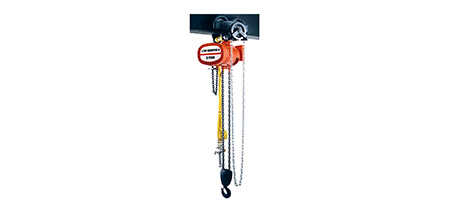

CM Airstar 6

The CM Airstar 6 is a lightweight and compact air chain hoist built for jobs when variable speed pneumatic power is necessary.

• Capacities ranging from 1/2 Ton-3Ton
• Hoist alloy load chain for heavy duty or stainless steel chain for spark resistant, medium duty loads.
• Lightweight aluminum frame and cover. Internal muffler reduces sound level
• Made in the U.S.A. Lifetime warranty.

Airstar 6 Chain Hoists
Pendant Control / Hook Suspension
Capacity	Model	Wt.	Lift Speed
1-ton	7405A	97 lbs.	13 fpm
1-ton	7405B	99 lbs.	30 fpm
2-ton	7406A	114 lbs.	6 fpm
2-ton	7406B	116 lbs.	15 fpm
3-ton	7407A	148 lbs.	4 fpm
3-ton	7407B	150 lbs.	10 fpm
Spark/Corrosion Resistant Models, Pendant Control / Hook Suspension
1/2-ton	7408A	99 lbs.	16 fpm
1-ton	7409A	116 lbs.	8 fpm
2-ton	7410A	150 lbs.	5 fpm
Pendant Control / Lug Suspension
Capacity	Model	Wt.	Lift Speed
1-ton	7405C	110 lbs.	13 fpm
1-ton	7405D	112 lbs.	30 fpm
2-ton	7406C	120 lbs.	6 fpm
2-ton	7406D	122 lbs.	15 fpm
3-ton	7407C	168 lbs.	4 fpm
3-ton	7407D	170 lbs.	10 fpm
Spark/Corrosion Resistant Models, Pendant Control/Lug Suspension
1/2-ton	7408B	114 lbs.	16 fpm
1-ton	7409B	124 lbs.	8 fpm
2-ton	7410B	174 lbs.	5 fpm
Call (314) 869-7200 or Email for pricing
