Harrington Air Hoist

AH Air Chain Hoist

The AH Mini Cat air chain hoists weighs only 12 pounds, but there is nothing small about its performance. The compact size makes it perfect for assembly lines, workstations and on-site jobs.

• Capacities ranging from 250 lb. to 500 lb.
• Available in pendant, cord and manipulator control
• Unlimited duty cycle
• High speed lifting
• Very fine feathering control
• Low noise for operator comfort
• AH Mini-Cat Series - Cord and Pendant Control

Harrington AH Hoist
Cap. (tons)	Part No.	Lift Speed (fpm)	Wt. (lbs.)
250	AH250C	47	19
250	AH250P	47	19
500	AH500C	32	19
500	AH500P	32	19

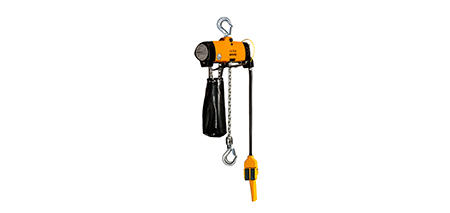

AL Lube Free/Spark Resistant Air Chain Hoist

The Harrington AL hoists are certified spark resistant and are suitable when a clean environment is necessary.

• Capacities range from 1/4 Ton to 5 Ton
• Can operate completely dry which is perfect for food, chemical and pharmaceutical industries
• Available in pendant, cord or twist rod control
• Heave duty disc brake
• Plated and blue-chromate steel load chain
• Can operate with oil for longer vane life

Harrington AL Hoist
Cap. (tons)	Part No.	Lift Speed (fpm)	Wt. (lbs.)
1/4	AL003C	61	39
1/4	AL003P	61	39
1/2	AL005C	41	39
1/2	AL005P	41	39
1	AL010C2	21	55
1	AL010P2	21	55
3	AL030C	10	123
3	AL030P	10	123
5	AL050C2	5.2	234
5	AL050P2	5.2	234

AW Lube Free/Spark Resistant, Wash Down Pneumatic Chain Hoist

The AW Series Certified Wash Down and Spark Resistant Pneumatic Hoists are designed for use in humid, limited corrosive or outdoor environments and where equipment must be washed or hosed off on a regular basis. These industrial, extreme-duty rated hoists are certified spark resistant (explosive atmospheres that require features that reduce the risk of spark) to level ll 2GD c T5 llB T100°C and are in compliance with the EU ATEX Directive. AW Wash Down Pneumatic Hoists were built based on the AL Lube Free air hoists and therefore they are suitable for operation with or without lubrication in the air supply.

• Available in 1/2 and 1 Ton capacities
• Unpainted aluminum body
• Stainless steel and electro-plated external components
• Gear box and chain lubricants comply with FDA standards
• Heavy-duty, self-adjusting, patented disk brake
• Bearing supported planetary gearing system
• Upper and lower limit switches

AW PENDANT MODELS
Cap. (tons)	Part No.	Lift (ft.)	Up/Down Speed (fpm)
1/2	AW005P	10	41 / 72
1	AW010P2	10	21 / 36

AW CORD MODELS
Cap. (tons)	Part No.	Lift (ft.)	Up/Down Speed (fpm)
1/2	AW005C	10	41 / 72
1	AW010C2	10	21 / 36

Harrington Air Chain Hoist Documents

TSOC distributes Harrington Air Powered Chain Hoists; serving clients from coast to coast, Canada, Mexico and especially focused in Missouri, Illinois, Indiana, Iowa, Kansas, Nebraska, Arkansas, Mississippi, Tennessee, Kentucky, South Carolina, Florida, and Oklahoma.
